Boundary Mapping & Field Surveying Harness

JDH25111

Allows fitment of GreenStar Display, StarFire Receiver, and M Modem to utility vehicles for boundary mapping and field surveying with T3RRA Cutta.

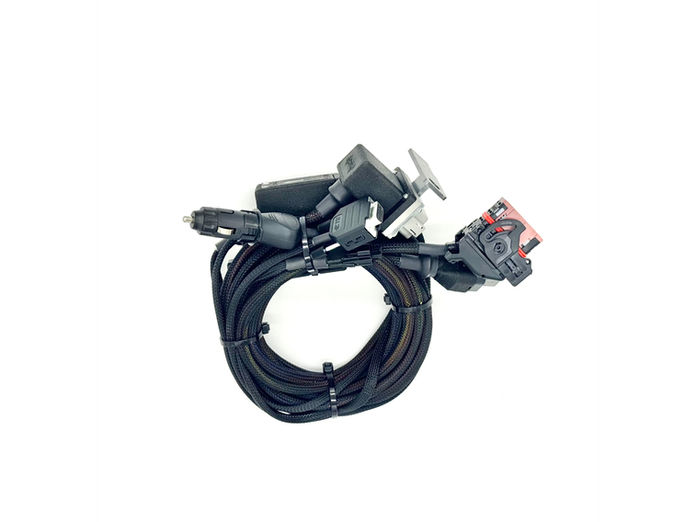

Birds-eye view of bundled Boundary Mapping & Field Surveying Harness with visible connectors for John Deere StarFire receivers, G5 Universal displays, and M-Modem, used in high-precision boundary mapping and field surveying

Mapping and Field Surverying.jpg

1/1

RRP

$ 950.43 AUD (ex GST) | $ 1,045.47 (inc GST)

Partner Pricing Available

Wholesale pricing is available to approved dealerships and OEMs. Request a quote to receive AgriStag partner rates.

Request a quote or place an order

About

The Boundary Mapping & Field Surveying Harness enables easy setup of a GreenStar Display and StarFire Receiver on side-by-sides or utility vehicles for boundary mapping and field surveying applications with T3RRA Cutta. Powered via the 12V accessory socket, the harness includes an on/off switch to safely power down the GreenStar Display, preserving settings and preventing data loss. Additionally, it includes an MTG and Ethernet connection to support M Modem installation, allowing for wireless data transfer directly to John Deere Operations Center. This plug-and-play solution streamlines field survey setup, reduces technician time, and ensures reliable data capture during pre-operation mapping.

Compatability

Compatible with John Deere receivers StarFire 3000 and newer, M-Modem Mobile Telematics Gateway, and John Deere G5 Universal displays.

For high-precision boundaries utilised with tractor automation, boundaries should be mapped using an SF7000 or SF7500 receiver with the current software. Consult with your John Deere dealer about high-precision boundaries to ensure you're recording them accurately the first time.

Fitment & Routing

For fitment to a ute, route the harness through the door by gently latching it shut so it is slightly ajar with the harness at the top corner of the door to prevent crushing the wires. Alternatively, the harness can be routed through a window. Mount your receiver on the headboard of the tray and plug the power connector into your accessory socket.

Build Time

Typical build time: 1-2 days, depending on stock availability, sourcing of parts, and current demand. Contact us (or your dealer) to confirm lead times at time of order.
